Product Summary
The HCPL-M453-500E is a small outline, 5 lead, high speed optocoupler. It is a single channel device in a five lead miniature footprint. The applications of the HCPL-M453-500E include: (1)Line Receivers -High common mode transient immunity (>1000 V/μs) and low input-output capacitance (0.6 pF); (2)High Speed Logic Ground Isolation - TTL/TTL, TTL/LTTL, TTL/CMOS, TTL/LSTTL; (3)Replace Slow Phototransistor Optocouplers; (4)Replace Pulse Transformers - Save board space and weight; (5)Analog Signal Ground Isolation -Integrated photon detector provides improved linearity over phototransistor type.
Parametrics
HCPL-M453-500E absolute maxing ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Operating Temperature: -55℃ to +100℃; (3)Average Input Current - IF: 25mA; (4)Peak Input Current - IF: 50mA(50% duty cycle, 1 ms pulse width); (5)Peak Transient Input Current - IF: 1.0A(≤1 μs pulse width, 300 pps); (6)Reverse Input Voltage - VR (Pin3-1): 5V; (7)Input Power Dissipation: 45mW; (8)Average Output Current - IO (Pin 5): 8mA; (9)Peak Output Current: 16mA; (10)Output Voltage - VO (Pin 5-4): -0.5V to 20V; (11)Supply Voltage - VCC (Pin 6-4): -0.5V to 30V; (12)Output Power Dissipation: 100mW.
Features
HCPL-M453-500E features: (1)Surface Mountable; (2)Very Small, Low Profile JEDEC Registered Package Outline; (3)Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes; (4)Very High Common Mode Transient Immunity:; (5)15000 V/μs at VCM = 1500 V Guaranteed; (6)High Speed: 1 Mb/s; (7)TTL Compatible; (8)Guaranteed AC and DC Performance over Temperature: 0℃ to 70℃; (9)Open Collector Output; (10)Recognized Under the Component Program of U.L. (File No. E55361) for Dielectric Withstand Proof Test Voltage of 3750 Vac, 1 Minute; (11)Lead Free Option.

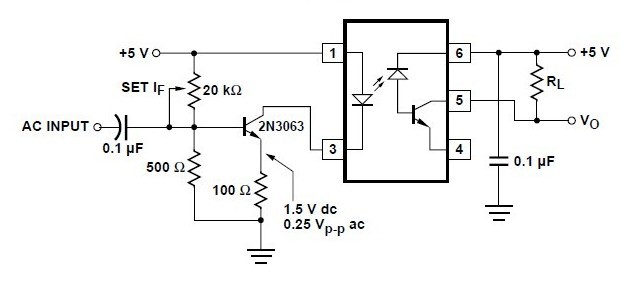

Diagrams

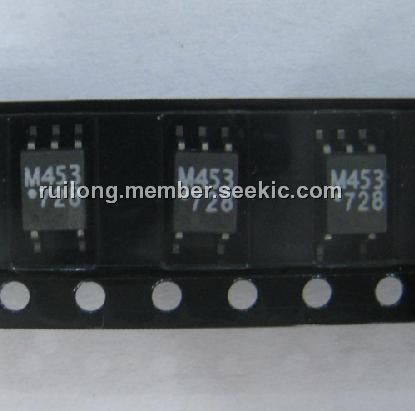

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-M453-500E |
Avago Technologies |
High Speed Optocouplers 1MBd 3750Vdc |
Data Sheet |
|
|
||||||||||||
