Product Summary

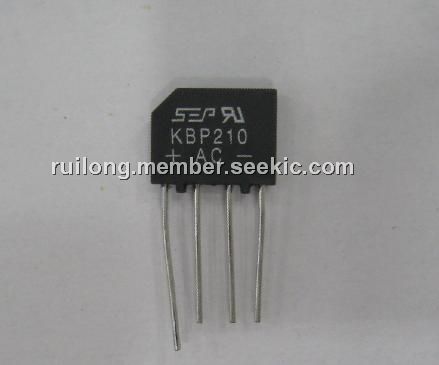

The KBP210 is a silicon bridge rectifier, which is also a kind of EIC discrete Semiconductor.
Parametrics
KBP210 maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 1000 Volts; (2)Maximum RMS Voltage: 700 Volts; (3)Maximum DC Blocking Voltage: 1000 Volts; (4)Maximum Average Forward Current, Tc = 50℃ IF(AV): 2.0 Amps; (5)Maximum Forward Voltage per Diode at IF = 1.0 Amps: 1.0V; (6)Typical Junction Capacitance per Diode: 24pF; (7)Typical Thermal Resistance: 30℃/W; (8)Operating Junction Temperature Range: -55 to 125℃; (9)Storage Temperature Range: -55 to 125℃.
Features
KBP210 features: (1)High case dielectric strength; (2)High surge current capability; (3)High reliability; (4)Low reverse current; (5)Low forward voltage drop; (6)Ideal for printed circuit board.

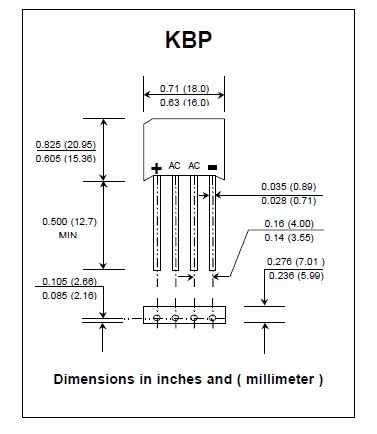

Diagrams
