Product Summary

The LMV7219M7X is a low-power, high-speed comparator with internal hysteresis. The device operating voltage ranges is from 2.7V to 5V with push/pull rail-to-rail output. It achieves a 7ns propagation delay while consuming only 1.1mA of supply current at 5V. The applications of the LMV7219M7X include: (1)Portable and battery-powered systems; (2)Scanners; (3)Set top boxes; (4)High speed differential line receiver; (5)Window comparators; (6)Zero-crossing detectors; (7)High-speed sampling circuits.

Parametrics

LMV7219M7X absolute maxing ratings: (1)ESD Tolerance Machine Body: 150V; Human Model Body: 2000V; (2)Differential Input Voltage: ±Supply Voltage; (3)Supply Voltage (V+ - V-): 5.5V; (4)Soldering Information Infrared or Convection (20 sec): 235℃; (5)Wave Soldering (10 sec) 260℃ (lead temp) ; (6)Voltage at Input/Output pins: (V+) + 0.4V (V-) - 0.4V; (7)Current at Input Pin: ±10mA.

Features

LMV7219M7X features: (1)Propagation delay 7ns; (2)Low supply current 1.1mA; (3)Input common mode voltage range extends 200mv below ground; (4)Ideal for 2.7V and 5V single supply applications; (5)Internal hysteresis ensures clean switching; (6)Fast rise and fall time 1.3ns; (7)Available in space-saving packages: 5-pin SC70-5 and SOT23-5.

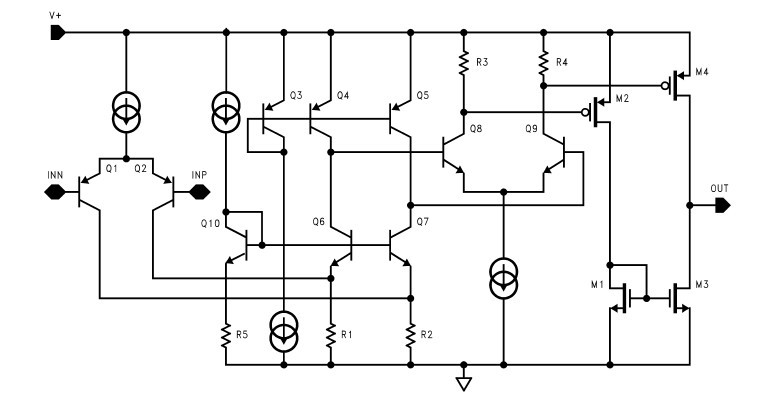

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMV7219M7X
LMV7219M7X
National Semiconductor (TI)
Comparator ICs
Data Sheet
0-3000: $0.72
3000-6000: $0.70
LMV7219M7X/NOPB
LMV7219M7X/NOPB
National Semiconductor (TI)
Comparator ICs
Data Sheet
0-1: $1.66
1-25: $1.33
25-100: $1.20
100-250: $1.07
