Product Summary
The LTC1562IG-2 is a low noise, low distortion continuous time filter with rail-to-rail inputs and outputs, optimized for a center frequency (fO) of 20kHz to 300kHz. Unlike most monolithic filters, no clock is needed. The applications of the LTC1562IG-2 include: (1)High Resolution Systems (14 Bits to 18 Bits); (2)Antialiasing/Reconstruction Filters; (3)Data Communications, Equalizers; (4)Dual or I-and-Q Channels (Two Matched 4th Order Filters in One Package); (5)Linear Phase Filtering; (6)Replacing LC Filter Modules.
Parametrics
LTC1562IG-2 absolute maxing ratings: (1)Total Supply Voltage (V+ to V-): 11V; (2)Maximum Input Voltage at Any Pin: (V– – 0.3V) ≤ V ≤ (V + + 0.3V); (3)Storage Temperature Range: -65℃ to 150℃; (4)Operating Temperature Range: -40℃ to 85℃; (5)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1562IG-2 features: (1)Continuous Time—No Clock; (2)Four 2nd Order Filter Sections, 20kHz to 300kHz Center Frequency; (3)Butterworth, Chebyshev, Elliptic or Equiripple Delay Response; (4)Lowpass, Bandpass, Highpass Responses; (5)99dB Typical S/N, ±5V Supply (Q = 1); (6)93dB Typical S/N, Single 5V Supply (Q = 1); (7)Rail-to-Rail Input and Output Voltages; (8)DC Accurate to 3mV (Typ); (9)±0.5% Typical Center Frequency Accuracy; (10)Zero-Power Shutdown Mode; (11)Single or Dual Supply, 5V to 10V Total; (12)Resistor-Programmable fO, Q, Gain.

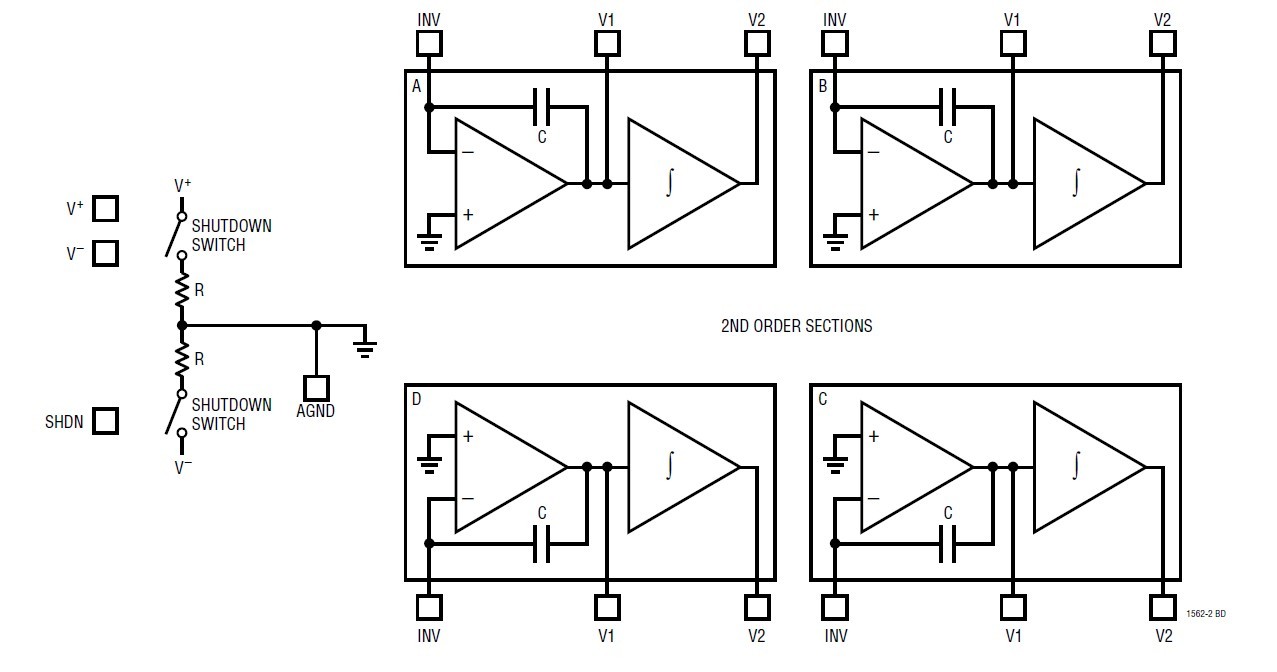

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1562IG-2#TRPBF |
|
IC FILTER UNIV RC QUAD LN 20SSOP |
Data Sheet |
|
|
||||||
|
LTC1562IG-2#TR |
|
IC FILTER UNIV RC QUAD LN 20SSOP |
Data Sheet |
|
|
||||||
|
LTC1562IG-2#PBF |
|
IC FILTER UNIV RC QUAD LN 20SSOP |
Data Sheet |
|
|
||||||
|
LTC1562IG-2 |
|
IC FILTER UNIVRSL RC QUAD 20SSOP |
Data Sheet |
|
|
||||||
