Product Summary
The M4A5-128/64-7YC-10YI is a high performance ECMOS in-system programmable logic. It from Lattice offers an exceptionally flexible architecture and delivers a superior Complex Programmable Logic Device (CPLD) solution of easy-to-use silicon products and software tools. The overall benefits for users are a guaranteed and predictable CPLD solution, faster time-to-market, greater flexibility and lower cost. The M4A5-128/64-7YC-10YI offers densities ranging from 32 to 512 macrocells with 100% utilization and 100% pin-out retention.
Parametrics
M4A5-128/64-7YC-10YI absolute maxing ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +100℃; (3)Device Junction Temperature: +130℃; (4)Supply Voltage with Respect to Ground: -0.5 V to +7.0V; (5)DC Input Voltage: -0.5V to VCC + 0.5V; (6)Static Discharge Voltage: 2000V; (7)Latchup Current (TA=-40℃ to +85℃): 200mA.
Features
M4A5-128/64-7YC-10YI features: (1)High-performance, E2CMOS 3.3-V & 5-V CPLD families; (2)Flexible architecture for rapid logic designs: Excellent First-Time-FitTM and refit feature; SpeedLockingTM performance for guaranteed fixed timing; Central, input and output switch matrices for 100% routability and 100% pin-out retention; (3)High speed: 5.0ns tPD Commercial and 7.5ns tPD Industrial; 182MHz fCNT; (4)32 to 512 macrocells; 32 to 768 registers; (5)44 to 388 pins in PLCC, PQFP, TQFP, BGA, fpBGA and caBGA packages; (6)Flexible architecture for a wide range of design styles: D/T registers and latches; Synchronous or asynchronous mode; Dedicated input registers; Programmable polarity; Reset/ preset swapping.

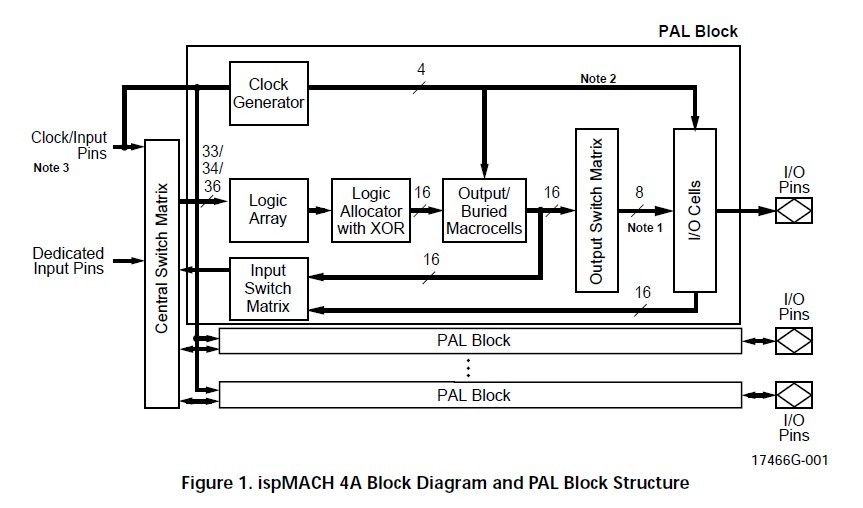

Diagrams
