Product Summary

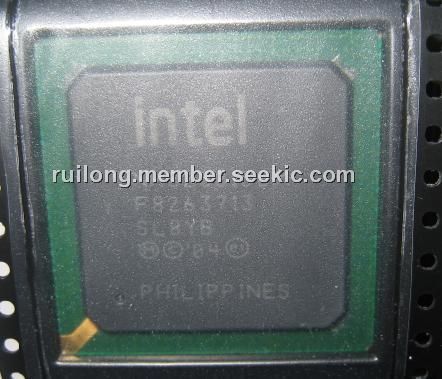

The NH82801GBM is an I/O controller hub.
Parametrics
NH82801GBM absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground(V5REF=5 V): -0.5 to V5REF + 0.5 V; (3)1.05 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (4)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (5)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (6)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (7)V_CPU_IO Supply Voltage with respect to VSS: -0.5 to 2.1 V.
Features
NH82801GBM features: (1)Support for Advanced Configuration and Power Interface, Version 2.0 (ACPI) providing power and thermal management; (2)PCI PME signal for Wake Up from Low-Power states; (3)System Clock Control; (4)System Sleep State Control; (5)Streamlined Legacy Power Management for APM-Based Systems.

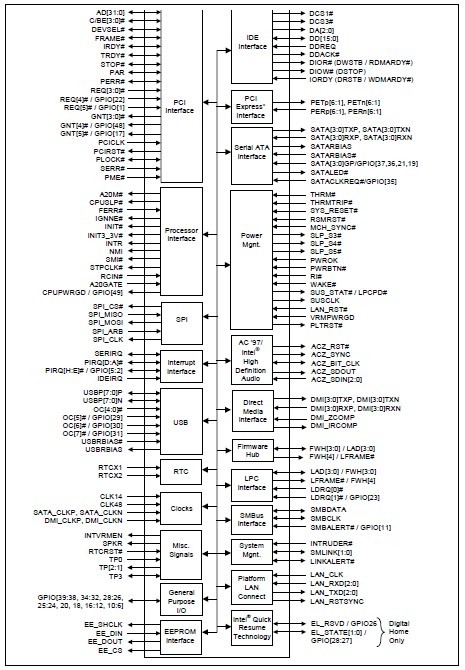

Diagrams
