Product Summary
The NH82801GR is a Gigabit Ethernet Controller. The NH82801GR is compatible with Intel 10/100 PHY (Intel 82562V Platform LAN Connect device) and GbE PHY (Intel 82566 Gigabit Platform LAN Connect device). The NH82801GR provides two interfaces: LCI for 10/100 operation and GLCI for GbE operation.The device supports multi speed operation, 10/100/1000 Mb/s. The NH82801GR provides a system interface via a PCI function. A full memory-mapped or I/O-mapped interface is provided to the software, along with DMA mechanisms for high performance data transfer.
Parametrics
NH82801GR absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground:-0.5V to Vcc3_3 + 0.5V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground (V5REF = 5 V):-0.5V to V5REF + 0.5V; (3)1.05 V Supply Voltage with respect to VSS:-0.5V to 2.1V; (4)1.25 V Supply Voltage with respect to VSS:-0.5V to 2.1V; (5)1.5 V Supply Voltage with respect to VSS:-0.5V to 2.1V; (6)3.3 V Supply Voltage with respect to VSS:-0.5V to 4.6V; (7)5.0 V Supply Voltage with respect to VSS:-0.5V to 5.5V; (8)V_CPU_IO Supply Voltage with respect to VSS:-0.5V to 2.1V.
Features
NH82801GR features: (1)Configurable LED operation for customization of LED display; (2)IPv4 and IPv6 Checksum Offload support (receive, transmit, and large send); (3)64-bit address master support for system using more than 4 GB of physical memory; (4)Configurable receive and transmit data FIFO, programmable in 1KB increments; (5)Intelligent interrupt generation to enhance driver performance; (6)Compliance with Advanced Configuration and Power Interface and PCI Power Management standards; (7)ACPI register set and power down functionality supporting D0 & D3 states; (8)Full wake-up support (ACPI); (9)Magic Packet wake-up enable with unique MAC address; (10)Fragmented UDP checksum off load for package reassembly.

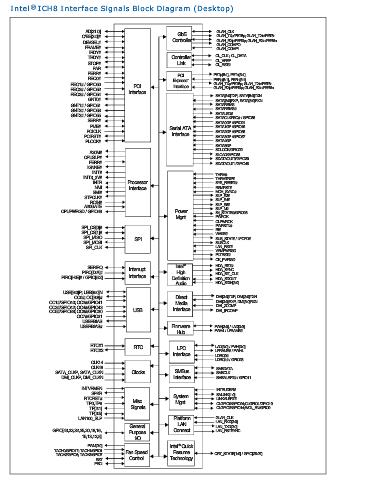

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

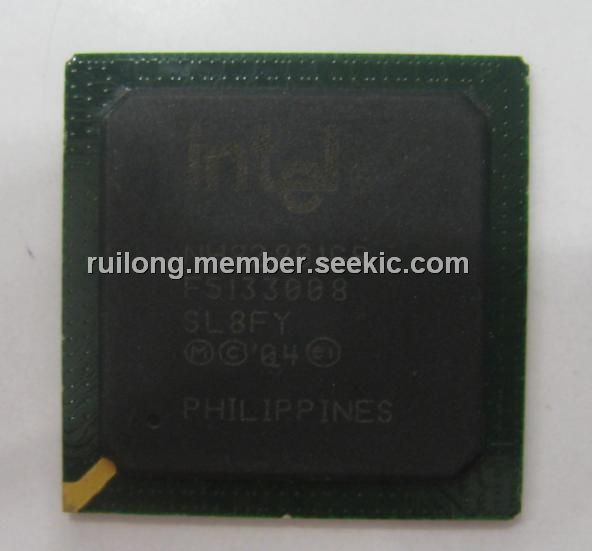

 NH82801GR SL8FY |
Other |
|
Data Sheet |
Negotiable |
|
||||||
