Product Summary

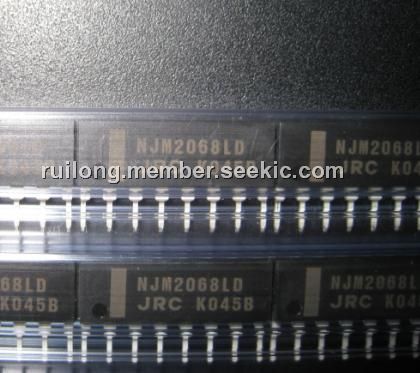

The NJM2068LD is a high performance, low noise dual operational amplifier. This amplifier features popular pin-out, superior noise performance, and superior total harmonic distorion. The NJM2068LD also features guaranteed noise performance with substantially higher gain-bandwidth product and slew rate which far exceeds that of the 4558 type amplifer. The specially designed low noise input transistors allow the NJM2068 to be used in very low noise signal processing applications such as audio preamplifiers and servo error amplifier.
Parametrics
NJM2068LD absolute maxing ratings: (1)Supply voltage V+/V-: ±18V; (2)Input voltage VIC: ±15V; (3)Differential input voltage VID: ±30V; (4)Power dissipation PD: DIP8 500mW, DMP8 300mW, SIP8 800mW, SSOP8 250mW; (5)Operating temperature range Topr: -20 ~+75℃; (6)Storage temperature range Tstg: -40~+125℃.
Features
NJM2068LD features: (1)Operating voltage: ±4V~±18V; (2)Low total harmonic distortion: 0.001% typ; (3)Low noise voltage: flat+jisa, 0.56μV typ; (4)High slew rate: 6V/μs typ; (5)Unity gain bandwidth: 27MHz@f=10KHz; (6)Package outline: DIP8, DMP8, SIP8, SSOP8; (7)Bipolar technology.

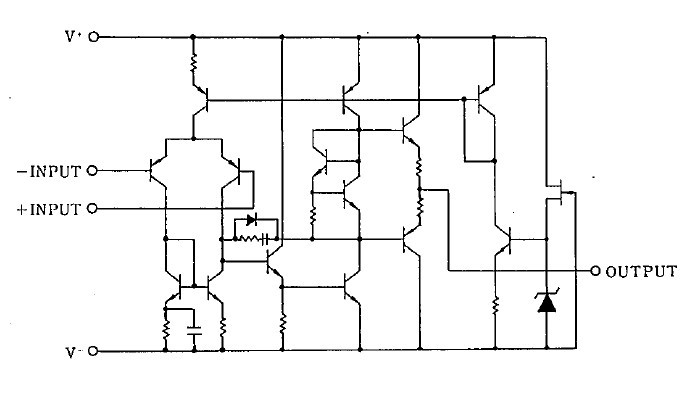

Diagrams
 |
