NRF905

Low supply current, 12.5mA, Data Ready signal, QFN, Single chip Transceiver, No external SAW filter

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.80

PartNumber:: NRF905

Brand:: Nordic Semiconductor - Nordic | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-16

From Other Seller

Part Number:NRF905
US $3.00 - 3.80
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

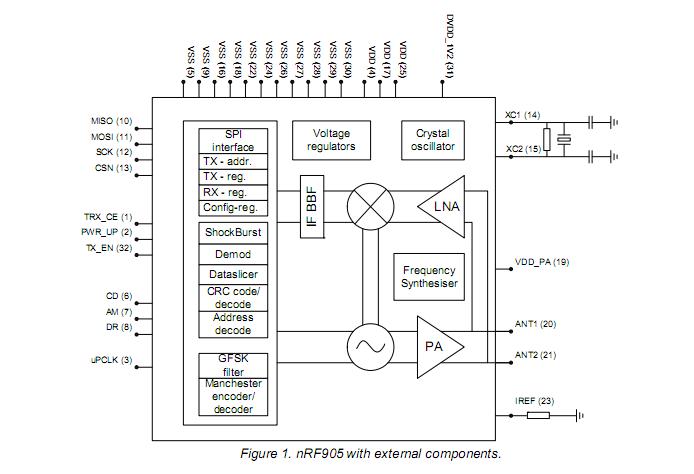

The NRF905 is a Single chip Transceiver. It consists of a fully integrated frequency synthesizer, receiver chain with demodulator, a power amplifier, a crystal oscillator and, a modulator. The applications of the NRF905 are Wireless data communication, Alarm and security system, Home automation, Remote control, Surveillance, Automotive, Telemetry, Keyless entry, Toys. Current consumption is very low, in transmit only 9mA at an output power of -10dBm, and in receive mode 12.5mA. Built-in power down modes makes power saving easily realizable.

Parametrics

NRF905 absolute maximum ratings: (1)Supply voltages: VDD:-0.3V to +3.6V, VSS:0V; (2)Input voltage:-0.3V to VDD +0.3V; (3)Output voltage:-0.3V to VDD +0.3V; (4)Total power dissipation(TA=85℃):200 mW; (5)Operating temperature:-40℃ to +85℃; (6)Storage temperature:-40℃ to +125℃; (7)Moisture sensitivity level:260℃.

Features

NRF905 features: (1)True single chip GFSK transceiver in a small 32 pin package (32L QFN 5x5mm); (2)ShockBurst? mode for low power operation; (3)Power supply range 1.9V to 3.6V; (4)Multi channel operation:ETSI/FCC Compatible ; (5)Channel switching time <650μs; (6)Extremely low cost Bill of Material (BOM) ; (7)No external SAW filter; (8)Adjustable output power up to 10dBm; (9)Carrier detect for "listen before transmit" protocols; (10)Data Ready signal when a valid data packet is received or transmitted; (11)Address Match for detection of incoming packet; (12)Automatic retransmission of data packet; (13)Automatic CRC and preamble generation; (14)Low supply current (TX), typical 9mA @ -10dBm output power; (15)Low supply current (RX), typical 12.5mA.
