Product Summary

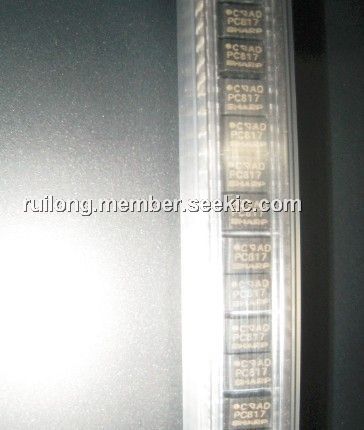

The PC817C is a High Density Mounting Type Photocoupler. The applications of it are Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending, Signal transmission between circuits of different potentials and impedances, Electric home appliances, such as fan machines heaters, etc.
Parametrics
PC817C absolute maximum ratings: (1)Forward current:50mA; (2)Peak forward current:1A; (3)Reverse voltage:6V; (4)Power dissipation:70mW; (5)Collector-emitter voltage:35V; (6)Emitter-collector voltage:6V; (7)Collector current:50mA; (8)Collector power dissipation:150mW; (9)Total power dissipation:200mW; (10)Isolation voltage:5000Vrms; (11)Operating temperature:-30℃ to + 100℃; (12)Storage temperature:-55℃ to + 125℃; (13)Soldering temperature:260℃.
Features
PC817C features: (1)Current transfer ratio(CTR: MIN. 50% at IF = 5mA ,VCE=5V); (2)High isolation voltage between input and output (Viso:5000Vrms); (3)Compact dual-in-line package; (4)Recognized by UL, file No. E64380: 1-channel type.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC817C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PC817C/C |
Other |
|
Data Sheet |
Negotiable |
|
||||
