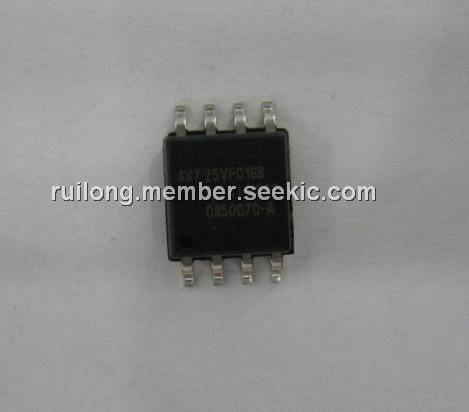

SST25VF016B-50-4I-S2AF

SPI serial flash, SOP8, -0.5V to VDD+0.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.20

PartNumber:: SST25VF016B-50-4I-S2AF

Brand:: Silicon Storage Technology, Inc - SST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-16

From Other Seller

Part Number:SST25VF016B-50-4I-S2AF
US $1.05 - 1.20
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

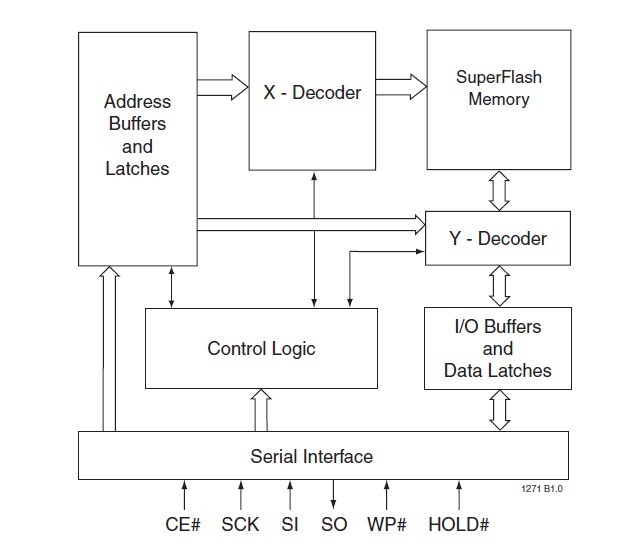

The SST25VF016B-50-4I-S2AF is a SPI serial flash. It features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B-50-4I-S2AF is enhanced with improved operating frequency and even lower power consumption than the original SST25VFxxxA devices. It is manufactured with the proprietary of SST, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

Parametrics

SST25VF016B-50-4I-S2AF absolute maxing ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Package Power Dissipation Capability (TA = 25℃): 1.0W; (6)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (7)Output Short Circuit Current: 50mA.

Features

SST25VF016B-50-4I-S2AF features: (1)Single Voltage Read and Write Operations: 2.7-3.6V; (2)Serial Interface Architecture: SPI Compatible: Mode 0 and Mode 3; (3)High Speed Clock Frequency: 50 MHz; (4)Superior Reliability: Endurance: 100,000 Cycles(typical); Greater than 100 years Data Retention; (5)Low Power Consumption: Active Read Current: 10 mA(typical); Standby Current: 5 μA (typical); (6)Flexible Erase Capability: Uniform 4 KByte sectors; Uniform 32 KByte overlay blocks; Uniform 64 KByte overlay blocks; (7)Fast Erase and Byte-Program: Chip-Erase Time: 35 ms(typical); Sector-/Block-Erase Time: 18 ms (typical); Byte-Program Time: 7μs (typical).
