Product Summary
The AN17812A is a Dual channel OTL 1.0 W audio power amplifier with volume, mute and standby control. The application of it is ICs for low frequency amplifier.
Parametrics
AN17812A absolute maximum ratings: (1)Operating shock:4900m/S2; (2)Operating constant gravity:9810m/S2; (3)Operating ambient atmospheric pressure:1.013*105±0.61*105; (4)Operating ambient temperature:-25℃ to +70℃; (5)Storage temperature:-55℃ to +150℃; (6)Power dissipation:2W; (7)Supply current:1.5A; (8)Supply voltage:15.0V.
Features

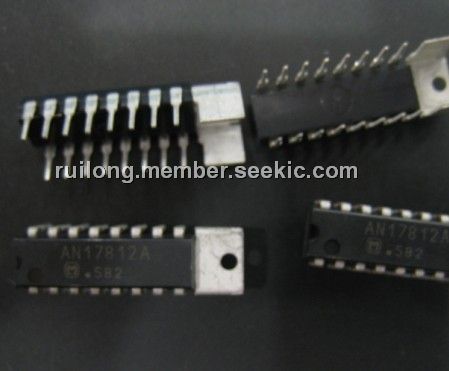

AN17812A features: (1)DIL 16-pin plastic package (with fin); (2)Silicon monolithic bipolar IC.

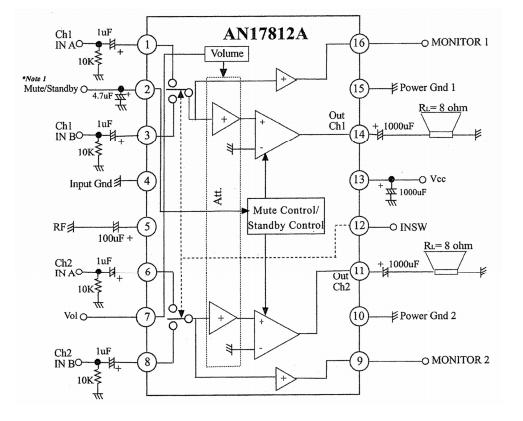

Diagrams
![]() |
