Product Summary

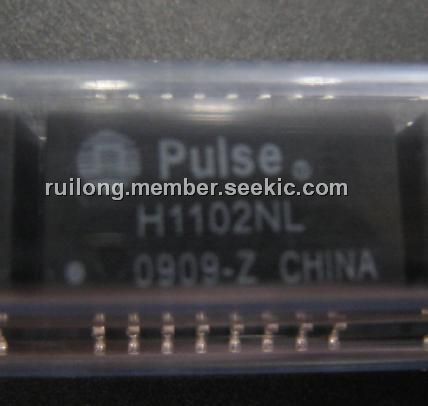

The H1102NL is a LAN discrete transformer module. The module for 10/100/1000BASE-T is optimized for all major LAN transceivers. It provides electrical circuit isolation that meets IEEE 802.3, while maintaining signal integrity needed for the most demanding applications.
Parametrics
H1102NL specifications: (1)Turns Ratio TX: 1:1; RX: 1:1; (2)Insertion Loss 100kHz–100MHz(dB max): -1.1; (3)Return Loss(dB TYP): 30MHz: -20; 60MHz: -14; 80MHz: -11.5; (4)Differential to Common Mode Rejection(dB TYP): 30MHz: -42; 50MHz: -37; 100MHz: -33; (5)Crosstalk(dB TYP): 30MHz: -45; 60MHz: -40; 100MHz: -35; (6)Hipot(Vrms MIN): 1500.
Features
H1102NL features: (1)RoHS-5 peak reflow temperature rating 235℃; (2)RoHS-6 peak reflow temperature rating 245℃; (3)Meets IEEE 802.3 specification; (4)Compact footprint for use in the most space restrictive applications.

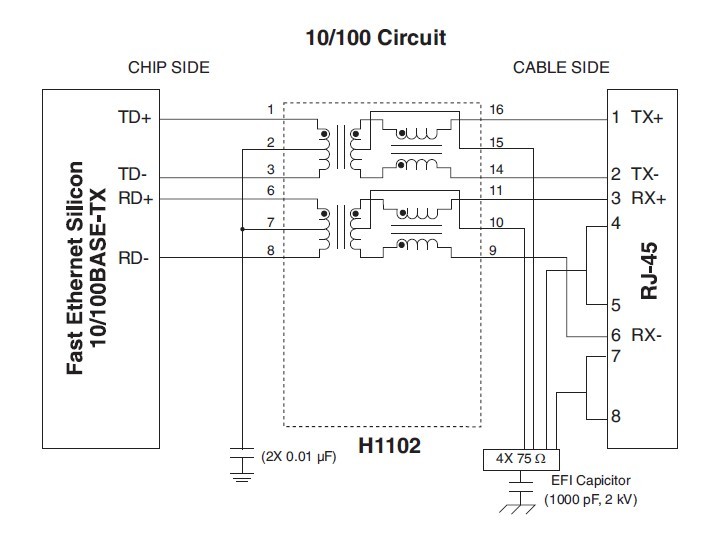

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() H1102NL |
![]() Pulse |
![]() Transformers Audio & Signal SINGLE 1:1 SMD |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() H1102NLT |
![]() Pulse |
![]() Transformers Audio & Signal Single Port Transfor |
![]() Data Sheet |
![]()
|
|
