Product Summary
This 8-bit shift register HD74LS164P features gated serial inputs and an asynchronous clear. The gated serial inputs (A and B) permit complete control over incoming data as a low at either (or both) input(s) inhibits entry of the new data and resets the first flip-flop to the low level at the next clock pulse.
Parametrics
HD74LS164P absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VIN: 7 V; (3)Power dissipation, PT: 400 mW; (4)Storage temperature, Tstg: –65 to +150℃.
Features
HD74LS164P features: (1)Package Type: DILP-14 pin ; (2)Package Code(Previous Code): PRDP0014AB-B(DP-14AV); (3)Package Abbreviation: P .

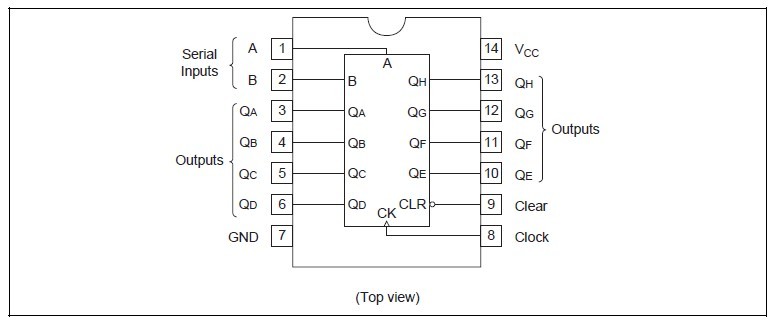

Diagrams
 |
