Product Summary

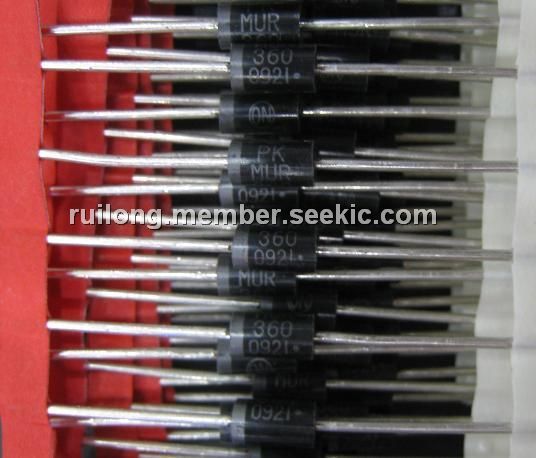

The MUR360RLG is a Plastic High-Efficiency Rectifier.

Parametrics

MUR360RLG absolute maximum ratings: (1)Maximum repetitive peak reverse voltage:600V; (2)Maximum RMS voltage:420V; (3)Maximum DC blocking voltage:600V; (4)Peak forward surge current 8.3 ms single half sine-wave:70A; (5)Typical thermal resistance:15℃/W; (6)Operating junction and storage temperature range:-50℃ to +150℃; (7)Average Rectified Output Current TT=120℃:3.0A; (8)Maximum peak reverse current full cycle @TA=75℃:30μA.

Features

MUR360RLG features: (1)Low reverse leakage; (2)High forward surge capability; (3)High temperature soldering guaranteed:250℃/10 seconds, 0.375" (9.5mm) lead length,; (4)5 lbs. (2.3kg) tension.

Diagrams

MUR360RLG package dimensions
