Product Summary

The TC7SZ32FU is a 2-Input OR Gate.

Parametrics

TC7SZ32FU absolute maximum ratings: (1)Supply voltage:-0.5V to 6V; (2)DC input voltage:-0.5V to 6V; (3)DC output voltage:-0.5V to 6V or -0.5V to VCC +0.5V; (4)Input diode current:-20mA; (5)Output diode current:-20mA; (6)DC output current:±50mA; (7)DC VCC/ground current:±50mA; (8)Power dissipation:200mW; (9)Storage temperature:-65℃ to 150℃; (10)Lead temperature (10 s):260℃.

Features

TC7SZ32FU features: (1)High output current: ±24 mA (min) at VCC = 3 V ; (2)Super high speed operation: tpd=2.4 ns (typ.) at VCC= 5V, 50pF ; (3)Operating voltage range: VCC = 1.8 to 5.5 V ; (4)5.5-V tolerant inputs ; (5)5.5-V power down protection output ; (6)Matches the performance of TC74LCX series when operated at 3.3- V VCC.

Diagrams

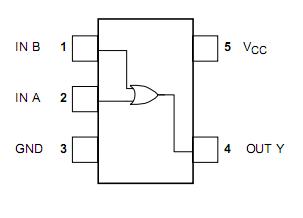

TC7SZ32FU pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

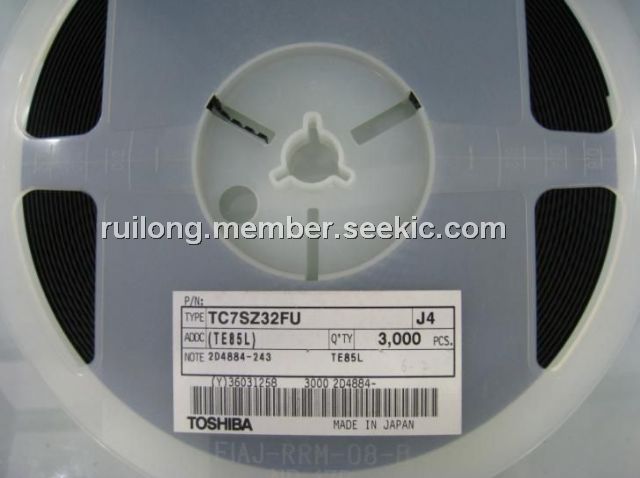

TC7SZ32FU(T5L,F,T)
TC7SZ32FU(T5L,F,T)
Toshiba (VA)
IC GATE OR 2INPUT 5-SSOP
Data Sheet
1-25: $0.15
25-100: $0.11
100-250: $0.07
250-500: $0.06
500-1000: $0.05
TC7SZ32FU(T5L,JF,T
TC7SZ32FU(T5L,JF,T

IC GATE OR 2INPUT 5-SSOP
Data Sheet
0-1: $0.29
1-10: $0.21
10-25: $0.17
25-100: $0.14
100-250: $0.10
250-500: $0.08
500-1000: $0.06
TC7SZ32FU(T5L,T)
TC7SZ32FU(T5L,T)

IC GATE OR 2INPUT 5-SSOP
Data Sheet
Negotiable
