Product Summary

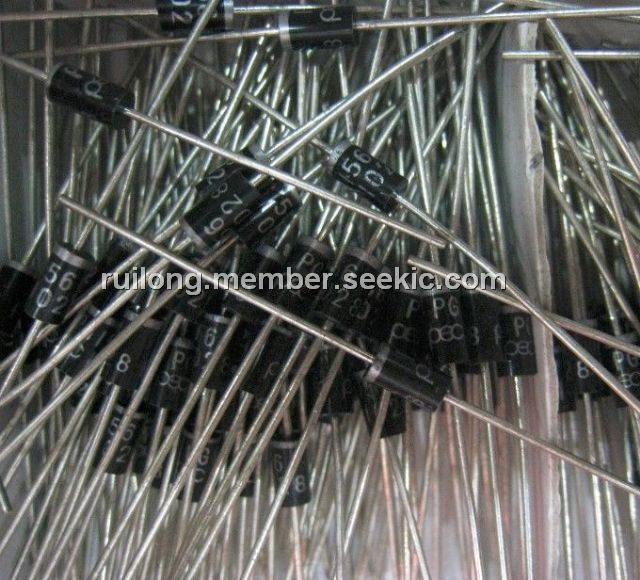

The PG156 is a glass passivated junction plastic rectifier(VOLTAGE - 50 to 1000 Volts current - 1.5 Amperes).
Parametrics
PG156 maximum ratings: (1)Maximum Forward Voltage at 1.5A 1.1 V; (2)Maximum Reverse Current Ta=25 5.0 A; (3)Typical Junction capacitance: 25℃ PF; (4)Typical Thermal Resistance RJA: 45.0 W; (5)Operating and Storage Temperature Range TA: -55 TO +150℃.
Features
PG156 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound; (2)1.5 ampere operation at TA=55 ￠J with no thermarunaway; (3)Exceeds environmentastandards of MIL-S-19500/228; (4)Glass passivated junction.

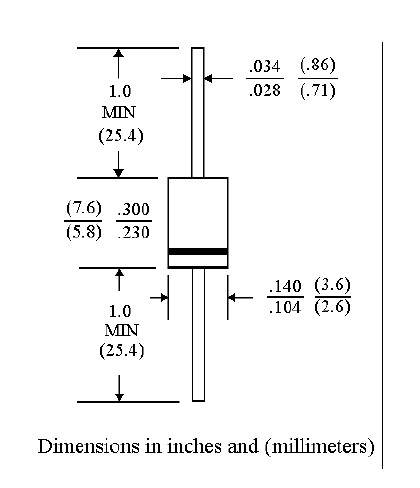

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PG156R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PG156 |
Other |
|
Data Sheet |
Negotiable |
|
||||
