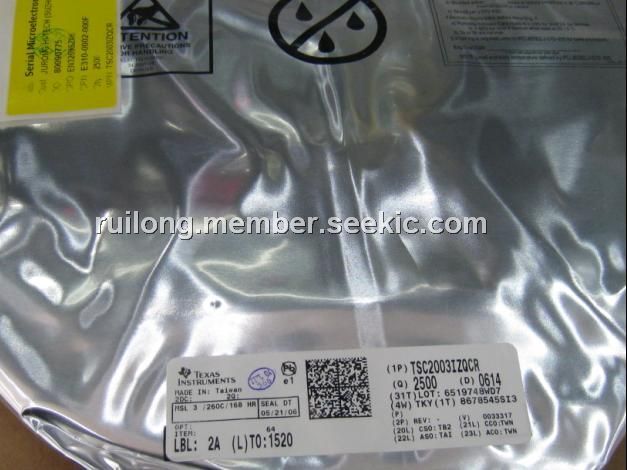

TSC2003IZQCR

4-wire, resistive touch screen controller, internal 2.5V reference, VFBGA-48, auto power down

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.80

PartNumber:: TSC2003IZQCR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Berry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:TSC2003IZQCR
US $1.80 - 2.80
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TSC2003IZQCR is a 4-wire resistive touch screen controller. It also features direct measurement of two batteries, two auxiliary analog inputs, temperature measurement, and touch-pressure measurement. The TSC2003IZQCR has an on-chip 2.5V reference that can be utilized for the auxiliary inputs, battery monitors, and temperature-measurement modes. The applications of the TSC2003IZQCR are personal digital assistants, portable instruments, point-of-sales terminals, pagers, touch screen monitors, cellular phones. The internal reference will operate down to 2.7V supply voltage while monitoring the battery voltage from 0.5V to 6V.

Parametrics

TSC2003IZQCR absolute maximum ratings: (1)+VDD to GND:–0.3V to +6V; (2)Digital Input Voltage to GND:–0.3V to +VDD + 0.3V; (3)Analog Input Voltage to GND. All Pins Except 7, 8:–0.3V to +VDD + 0.3V; (4)Analog Input Voltage Pins 7, 8 to GND:–0.3V to +6.0V; (5)Operating Temperature Range:–40℃ to +85℃; (6)Storage Temperature Range:–65℃ to +150℃; (7)Power Dissipation:(TJ Max – TA)/θJA; (8)Junction Temperature (TJ Max):+125℃; (9)θJA Thermal Impedance:+50℃/W; (10)Lead Temperature, Soldering: Vapor Phase (60s):+215℃, Infrared(15s):+220℃.

Features

TSC2003IZQCR features: (1)2.5V to 5.25V operation; (2)internal 2.5V reference; (3)direct battery measurement(0.5V to 6V); (4)on-chip temperature measurement; (5)touch-pressure measurement; (6)I2C interface supports:standard, fast, and high-speed modes; (7)auto power down; (8)TSSOP-16 and VFBGA-48 packages.
